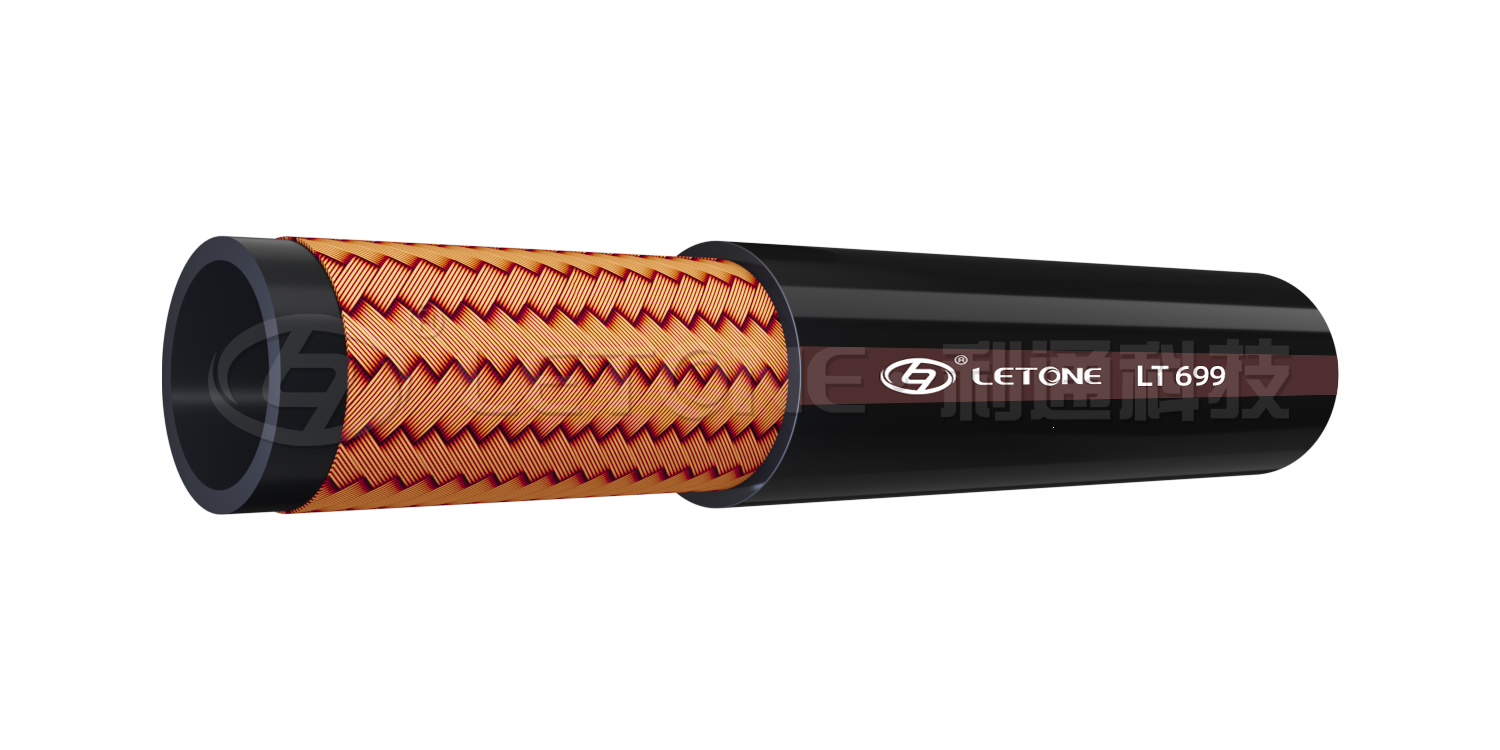

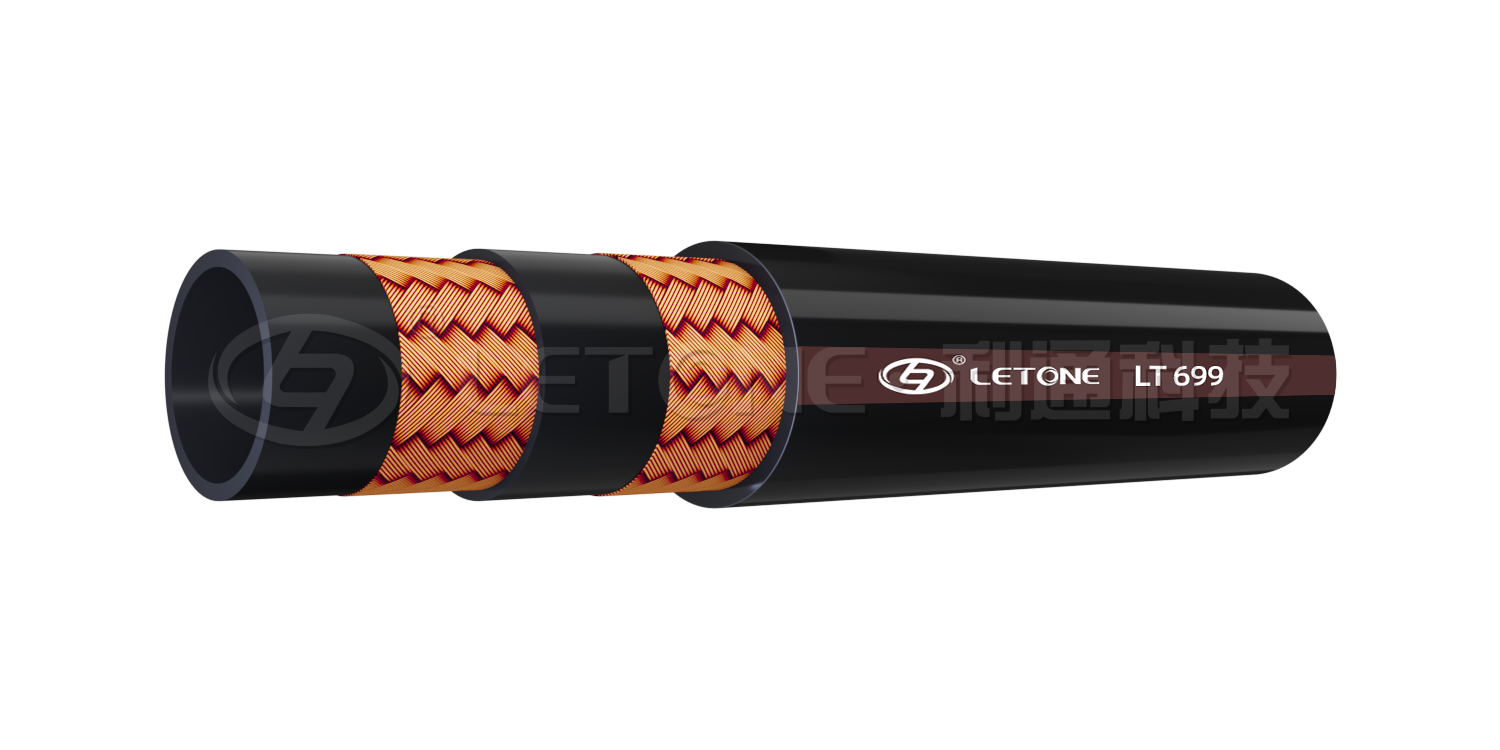

| 產品型號 TYPE | 英制規格 | 軟管內徑 | 增強層外徑O.D | 軟管外徑O.D | 工作壓力MAX.W.P | 試驗壓力P.P | 小爆破壓力MIN.B.P | 小脈沖次數MIN.IMPULSE | 小彎曲半徑MIN.B.R | 參考重量W.T | |||
| SIZE | 小 | 小 | 小 | 萬次 8K | |||||||||
| IN | MIN | MAX | MIN | MAX | MIN | MAX | MPA | MPA | MPA | CYCLES | MM | Kg/m | |
| -4 | 1/4-1 | 5.8 | 6.5 | 10.6 | 11.6 | 12.5 | 13.5 | 25 | 50 | 100 | 30 | 80 | 0.23 |
| -5 | 5/16-1 | 7.7 | 8.5 | 12.1 | 13.3 | 14.5 | 15.5 | 25 | 50 | 100 | 30 | 92 | 0.30 |
| -6 | 3/8-1 | 9.8 | 10.5 | 14.5 | 15.7 | 16.5 | 17.5 | 21 | 42 | 84 | 30 | 104 | 0.34 |
| -8 | 1/2-1 | 12.8 | 13.5 | 17.5 | 19.0 | 20.0 | 21.1 | 18 | 36 | 72 | 30 | 144 | 0.40 |
| -10 | 5/8-1 | 15.8 | 16.6 | 20.6 | 22.2 | 23.5 | 24.5 | 14 | 28 | 56 | 30 | 160 | 0.50 |
| -12 | 3/4-1 | 18.8 | 19.8 | 24.6 | 26.2 | 27.5 | 28.5 | 14 | 28 | 56 | 30 | 192 | 0.65 |
| -16 | 1-1 | 24.8 | 25.8 | 32.5 | 34.1 | 34.5 | 35.5 | 9 | 18 | 36 | 30 | 240 | 1.00 |
| -20 | 1 1/4-1 | 31.4 | 33 | 39.5 | 40.5 | 42.9 | 44.1 | 6.3 | 13 | 25 | 30 | 400 | 1186.2 |
| -24 | 1 1/2-1 | 37.7 | 39.3 | 45.2 | 46.2 | 48.6 | 49.8 | 5 | 10 | 20 | 30 | 480 | 1323 |
| -32 | 2-1 | 50.4 | 52 | 58.9 | 60.1 | 62.3 | 63.7 | 4 | 8 | 16 | 30 | 560 | 1823 |
| -4 | 1/4-2 | 5.8 | 6.5 | 12.1 | 13.3 | 14.2 | 15.2 | 42 | 84 | 168 | 50 | 80 | 0.34 |
| -5 | 5/16-2 | 7.7 | 8.5 | 13.7 | 14.9 | 15.8 | 16.8 | 42 | 84 | 168 | 50 | 92 | 0.43 |
| -6 | 3/8-2 | 9.8 | 10.5 | 16.1 | 17.3 | 18.2 | 19.2 | 35 | 70 | 140 | 50 | 104 | 0.52 |
| -8 | 1/2-2 | 12.8 | 13.5 | 19.0 | 20.6 | 21.3 | 22.3 | 28 | 56 | 112 | 50 | 144 | 0.63 |
| -10 | 5/8-2 | 15.8 | 16.6 | 22.2 | 23.8 | 24.5 | 25.5 | 28 | 56 | 112 | 50 | 160 | 0.78 |
| -12 | 3/4-2 | 18.8 | 19.8 | 26.2 | 27.8 | 28.7 | 29.7 | 25 | 50 | 100 | 50 | 192 | 0.92 |
| -16 | 1-2 | 24.8 | 25.8 | 34.1 | 35.7 | 36.2 | 37.2 | 21 | 42 | 84 | 50 | 240 | 1.32 |
| -20 | 1 1/4-2 | 31.4 | 33.0 | 43.3 | 45.7 | 46.7 | 48.3 | 14 | 28 | 56 | 50 | 400 | 1.80 |
| -24 | 1 1/2-2 | 37.7 | 39.3 | 49.6 | 20.0 | 52.6 | 54 | 9.0 | 18 | 36 | 50 | 480 | 2.20 |
| -32 | 2-2 | 50.4 | 52 | 62.3 | 64.7 | 66.0 | 67.6 | 8.0 | 16 | 32 | 50 | 610 | 3.00 |
加*項僅供參考，具體以管體為準
