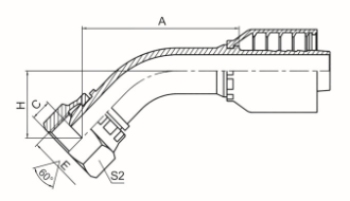

| 代 號 PART NO. | 螺紋E | 膠 管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| 編織 BRAIDED | 纏繞 SPIRAL | THREADE | 公稱內徑 DN | 標號DASH | A | C | H | S2 |
| 20641-12-04RW | -- | M12X1.5 | 6 | 04 | 44.1 | 4.5 | 20.5 | 17 |
| 20641-14-04TRW | -- | M14X1.5 | 6 | 04 | 42.4 | 5 | 18.8 | 19 |
| 20641-16-05TRW | -- | M16X1.5 | 8 | 05 | 44.8 | 6 | 20 | 22 |
| 20641-16-06RW | -- | M16X1.5 | 10 | 06 | 47.7 | 5.5 | 22.5 | 22 |
| 20641-18-06TRW | -- | M18X1.5 | 10 | 06 | 47 | 5.5 | 21.8 | 22 |
| 20641-20-08RW | 20642-20-08RW | M20X1.5 | 12 | 08 | 62.9 | 6.5 | 26.5 | 27 |
| 20641-22-08TRW | 20642-22-08TRW | M22X1.5 | 12 | 08 | 60 | 6 | 23.6 | 27 |
| 20641-24-10RW | 20642-24-10RW | M24X1.5 | 16 | 10 | 73.8 | 6.5 | 28.5 | 30 |
| 20641-26-10TRW | 20642-26-10TRW | M26X1.5 | 16 | 10 | 72.4 | 6 | 27.1 | 32 |
| 20641-27-10DTRW | 20642-27-10DTRW | M27X1.5 | 16 | 10 | 72.4 | 6 | 27.1 | 32 |
| 20641-27-10TRW | 20642-27-10TRW | M27X2 | 16 | 10 | 72.4 | 8 | 27.1 | 32 |
| 20641-30-10DTRW | 20642-30-10DTRW | M30X1.5 | 16 | 10 | 73.1 | 5.5 | 27.8 | 36 |
| 20641-30-12DTRW | 20642-30-12DTRW | M30X1.5 | 20 | 12 | 76.4 | 5.5 | 30.6 | 36 |
| 20641-30-12TRW | 20642-30-12TRW | M30X2 | 20 | 12 | 76.4 | 5.5 | 30.6 | 36 |
| 20641-36-16TRW | 20642-36-16TRW | M36X2 | 25 | 16 | 89.6 | 6.5 | 33.2 | 41 |
| 20641-39-16TRW | 20642-39-16TRW | M39X2 | 25 | 16 | 91 | 6.5 | 34.6 | 46 |
| 20641-45-20TRW | 20642-45-20TRW | M45X2 | 32 | 20 | 100.6 | 8.5 | 38.7 | 55 |
| 20641-52-24TRW | 20642-52-24TRW | M52X2 | 40 | 24 | 115.7 | 10 | 43 | 60 |
