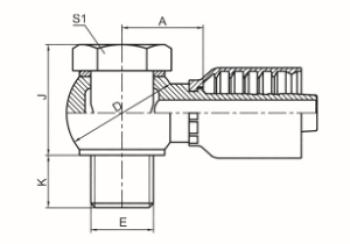

| 代 號 PART NO. | 螺紋E | 膠 管 HOSE BORE | 組合墊 | 尺寸 DIMENSIONS | ||||||
| 編織 BRAIDED | 纏繞 SPIRAL | THREADE | 公稱內徑 DN | 標號DASH | BONDED | A | D | J | K | S1 |
| 70011-10-04RW | -- | M10X1 | 6 | 04 | ZHD-10 | 18.5 | 17 | 20 | 5 | 14 |
| 70011-12-04RW | -- | M12X1.5 | 6 | 04 | ZHD-12 | 22 | 20 | 22 | 8 | 17 |
| 70011-12-05RW | -- | M12X1.5 | 8 | 05 | ZHD-12 | 22 | 20 | 22 | 8 | 17 |
| 70011-12-06RW | -- | M12X1.5 | 10 | 06 | ZHD-12 | 21.5 | 20 | 22 | 8 | 17 |
| 70011-14-04RW | -- | M14X1.5 | 6 | 04 | ZHD-14 | 22.5 | 24 | 24 | 8 | 19 |
| 70011-14-05RW | -- | M14X1.5 | 8 | 05 | ZHD-14 | 22.5 | 24 | 24 | 8 | 19 |
| 70011-14-06RW | -- | M14X1.5 | 10 | 06 | ZHD-14 | 22 | 24 | 24 | 8 | 19 |
| 70011-16-04RW | -- | M16X1.5 | 6 | 04 | ZHD-16 | 22 | 28 | 26 | 8 | 22 |
| 70011-16-05RW | -- | M16X1.5 | 8 | 05 | ZHD-16 | 22 | 28 | 26 | 8 | 22 |
| 70011-16-06RW | -- | M16X1.5 | 10 | 06 | ZHD-16 | 21.5 | 28 | 26 | 8 | 22 |
| 70011-18-04RW | -- | M18X1.5 | 6 | 04 | ZHD-18 | 24.5 | 32 | 30 | 8 | 24 |
| 70011-18-05RW | -- | M18X1.5 | 8 | 05 | ZHD-18 | 25.5 | 32 | 30 | 8 | 24 |
| 70011-18-06RW | -- | M18X1.5 | 10 | 06 | ZHD-18 | 25 | 32 | 30 | 8 | 24 |
| 70011-18-08RW | 70012-18-08RW | M18X1.5 | 12 | 08 | ZHD-18 | 25 | 32 | 30 | 8 | 24 |
| 70011-22-06RW | -- | M22X1.5 | 10 | 06 | ZHD-22 | 29.1 | 39 | 36 | 10 | 27 |
| 70011-22-08RW | 70012-22-08RW | M22X1.5 | 12 | 08 | ZHD-22 | 29 | 39 | 36 | 10 | 27 |
| 70011-22-10RW | 70012-22-10RW | M22X1.5 | 16 | 10 | ZHD-22 | 29.5 | 39 | 36 | 10 | 27 |
| 70011-26-12RW | 70012-26-12RW | M26X1.5 | 20 | 12 | ZHD-26 | 32.5 | 46 | 41 | 11 | 32 |
| 70011-30-16RW | 70012-30-16RW | M30X1.5 | 25 | 16 | ZHD-30 | 39.2 | 54 | 47 | 11 | 36 |
| 70011-30-20RW | 70012-30-20RW | M30X1.5 | 32 | 20 | ZHD-30 | 41.2 | 54 | 47 | 11 | 36 |
注：實際參數以圖冊為準
