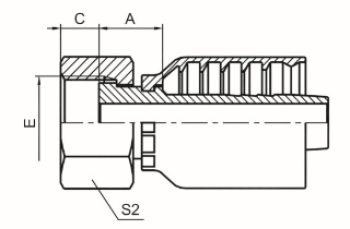

代號 PART NO.		螺紋E	膠管 HOSE BORE		尺寸 DIMENSIONS
編織 BRAIDED	纏繞 SPIRAL	THREADE	公稱內徑 DN	標號DASH	A	C	S2
20211-14-04TRW	--	M14X1.5	6	04	14.5	8	19
20211-14-05TRW	--	M14X1.5	8	05	17	10	19
20211-16-04TRW	--	M16X1.5	6	04	14.5	9	22
20211-16-05TRW	--	M16X1.5	8	05	14.5	9	22
20211-16-06RW	--	M16X1.5	10	06	18	8	22
20211-18-04TRW	--	M18X1.5	6	04	15	10.5	24
20211-18-05TRW	--	M18X1.5	8	05	15	10.5	24
20211-18-06TRW	--	M18X1.5	10	06	14.5	10.5	24
20211-20-06TRW	--	M20X1.5	10	06	16	10	24
20211-20-08RW	20212-20-08RW	M20X1.5	12	08	20.5	10	27
20211-22-06TRW	--	M22X1.5	10	06	16	10	27
20211-22-08TRW	20212-22-08TRW	M22X1.5	12	08	17	10	27
20211-22-10RW	20212-22-10RW	M22X1.5	16	10	21	10	27
20211-24-08TRW	20212-24-08TRW	M24X1.5	12	08	17	11	30
20211-24-10RW	20212-24-10RW	M24X1.5	16	10	21.5	10.5	30
20211-27-08TRW	20212-27-08TRW	M27X1.5	12	08	18.3	10	32
20211-27-10TRW	20212-27-10TRW	M27X1.5	16	10	18.8	10	32
20211-27-12RW	20212-27-12RW	M27X1.5	20	12	22	10	32
20211-30-10TRW	20212-30-10TRW	M30X1.5	16	10	20	10.5	36
20211-30-12TRW	20212-30-12TRW	M30X1.5	20	12	19	10.5	36
20211-36-12TRW	20212-36-12TRW	M36X2.0	20	12	20.5	13	41
20211-36-16TRW	20212-36-16TRW	M36X2.0	25	16	23.7	13	41
20211-39-16TRW	20212-39-16TRW	M39X2.0	25	16	23.7	13	46
20211-42-16TRW	20212-42-16TRW	M42X2.0	25	16	24.7	15	50
20211-45-20TRW	20212-45-20TRW	M45X2.0	32	20	23.7	15	55
20211-52-24TRW	20212-52-24TRW	M52X2.0	40	24	24.5	17	60
20211-60-24TRW	20212-60-24TRW	M60X2.0	40	24	24.5	19	70
20211-64-32TRW	20212-64-32TRW	M64X2.0	51	32	29	23	75
